WorkForce Power
boost
Compact, Portable Level II EV Charging Station for Rapid Deployment

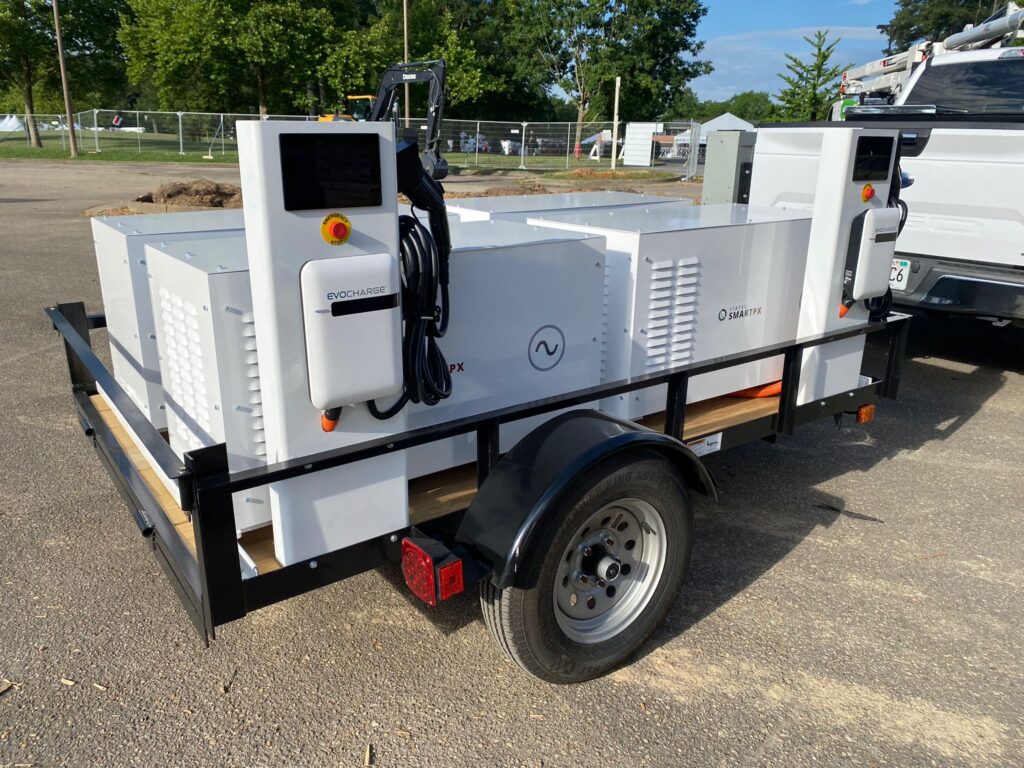

WorkForce Site Boost is a portable, modular Level II charging station utilizing a field-tested, proven electric powertrain. Compact and ready for rapid deployment, Site Boost Mobile Charging can charge up to 6 EVs at a time, allowing you to bring your power where you need it most.

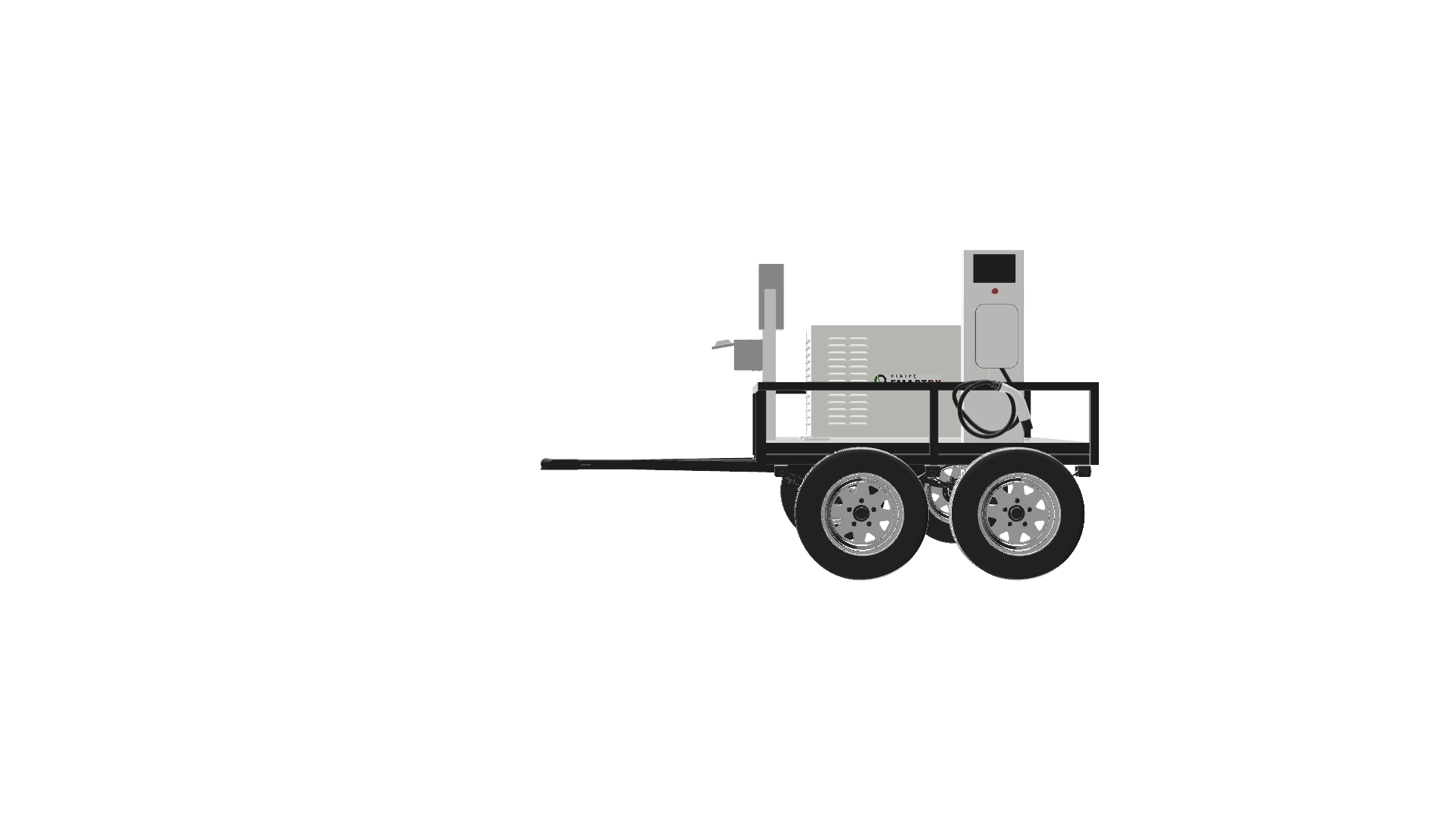

1 Module

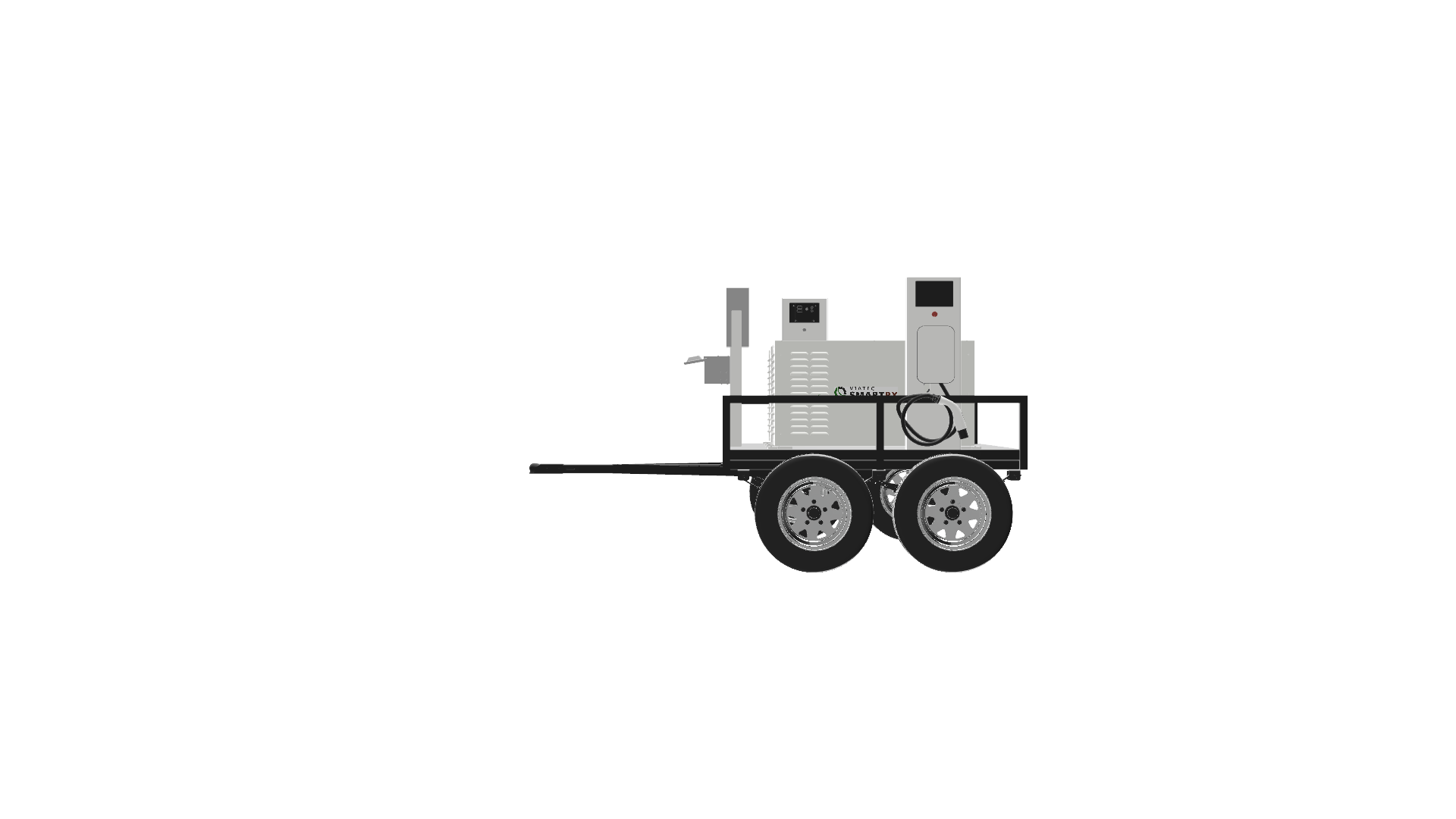

2 Modules

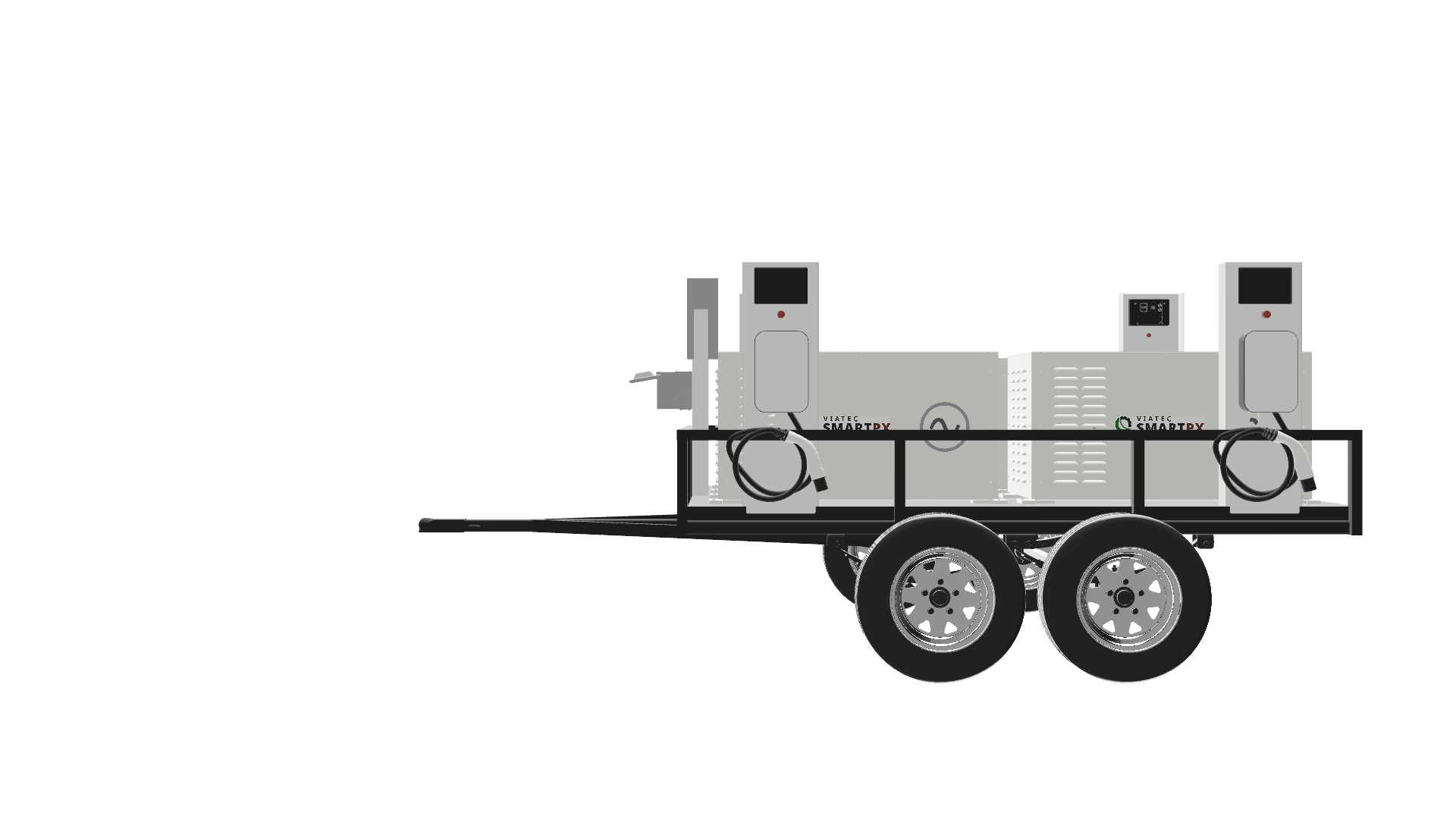

4 Modules

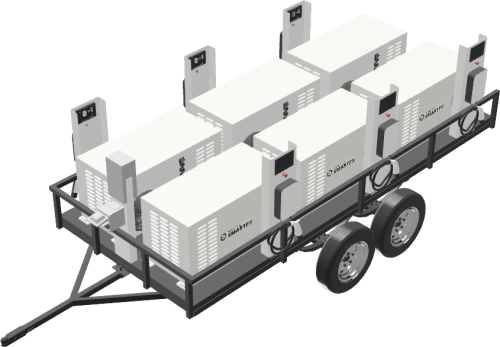

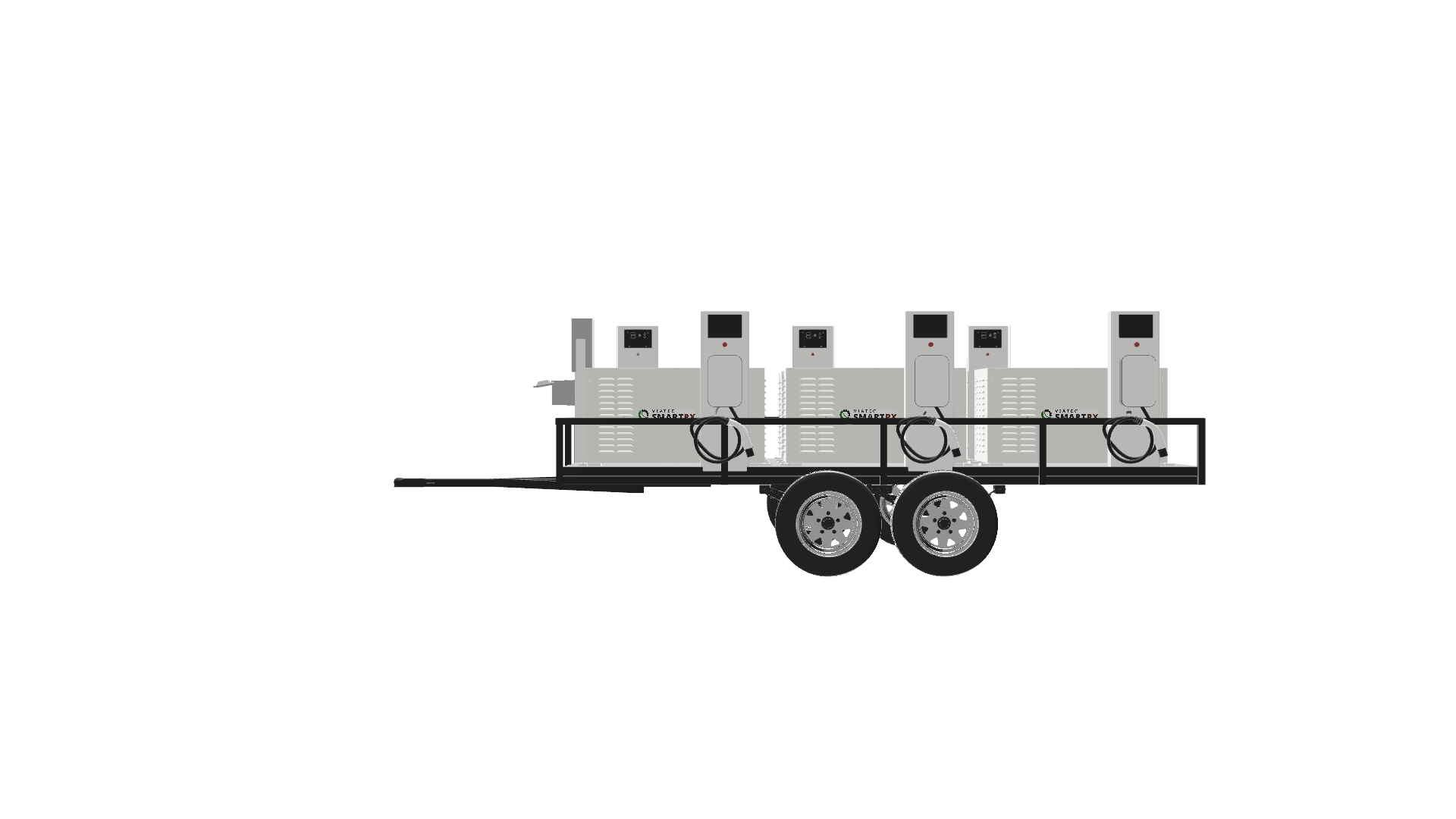

6 Modules
Maximize fuel replacement with grid electricity
Minimize engine idling to lower total cost of ownership (TCO)
Comply with local regulations, exceed ESG commitments
3kW electrical output: 12V DC / 120V AC for a full workday
Fully recharges off shore power in 4-5 hours and also charges on the go
Sustainable
Reduces emissions, clean and quiet alternative to traditional generators.
Scalable
Configurable design adaptable to fleet size and charging needs.
System Specifications
AC Output
| Voltage | 120V and 240V |
| Current (max continuous) | 100A (120V) or 50A (240V) |
| Power (rated max)* | 12kVA |
| Frequency | 60 Hz |
Export Power
| Current Rating | ~73 A at 13.7V (~36A at 27.4V) |
| Power Rating | 1000W |
Battery
| Chemistry | Lithium NMC |
| Storage Capacity | 14.4 kWh 21.6 kWh |
| Estimated Life | 10 years to 80% of the initial capacity |
| Battery Management System | Integrated |
| Operating Temperature Range** | -13°F to 115°F (-25°C to 45°C) ambient temperature |
User Interface
| Primary | 7” Color Touch Screen + Key Switch + Generator Toggle Switch |
Charging
| Default Charger | 1300W 100-260VAC 50/60Hz Input | ||||
| Recharge Time (Default Charger) | 14.4 kWh unit: 10 hrs 21.6 kWh unit: 15 hrs | ||||
| Fast Charger (Add‑on Option) | 6000W SAE J1772 EV Interface | Recharge Time (Fast Charger) | 14.4 kWh unit: 2.25 hrs 21.6 kWh unit: 3.25 hrs | Fast Charger Weight Addition | 25 lbs (11 kg) |
Dimensions and Weight
| Length | 45″ (1143 mm) |
| Width | 21″ (533 mm) |
| Height | 23″ (585 mm) |
| Weight | 14.4 kWh unit: 600 lbs (273 kg) 21.6 kWh unit: 700 lbs (318 kg) |
Note: Ambient temperature range is estimated based on cell temperature limits, cooling capacity, and built-in heater capacity. Actual performance may vary based on operating environment, storage conditions when not in use, etc.
no more diesel generator EV rescue.
Be pre-emptive and send a trailer out ahead of the path of your EV fleets, or extend the range of your EV on the fly by sending them off with WorkForce Site Boost.
