WorkForce Power
Generator
Go from diesel to electric with ease

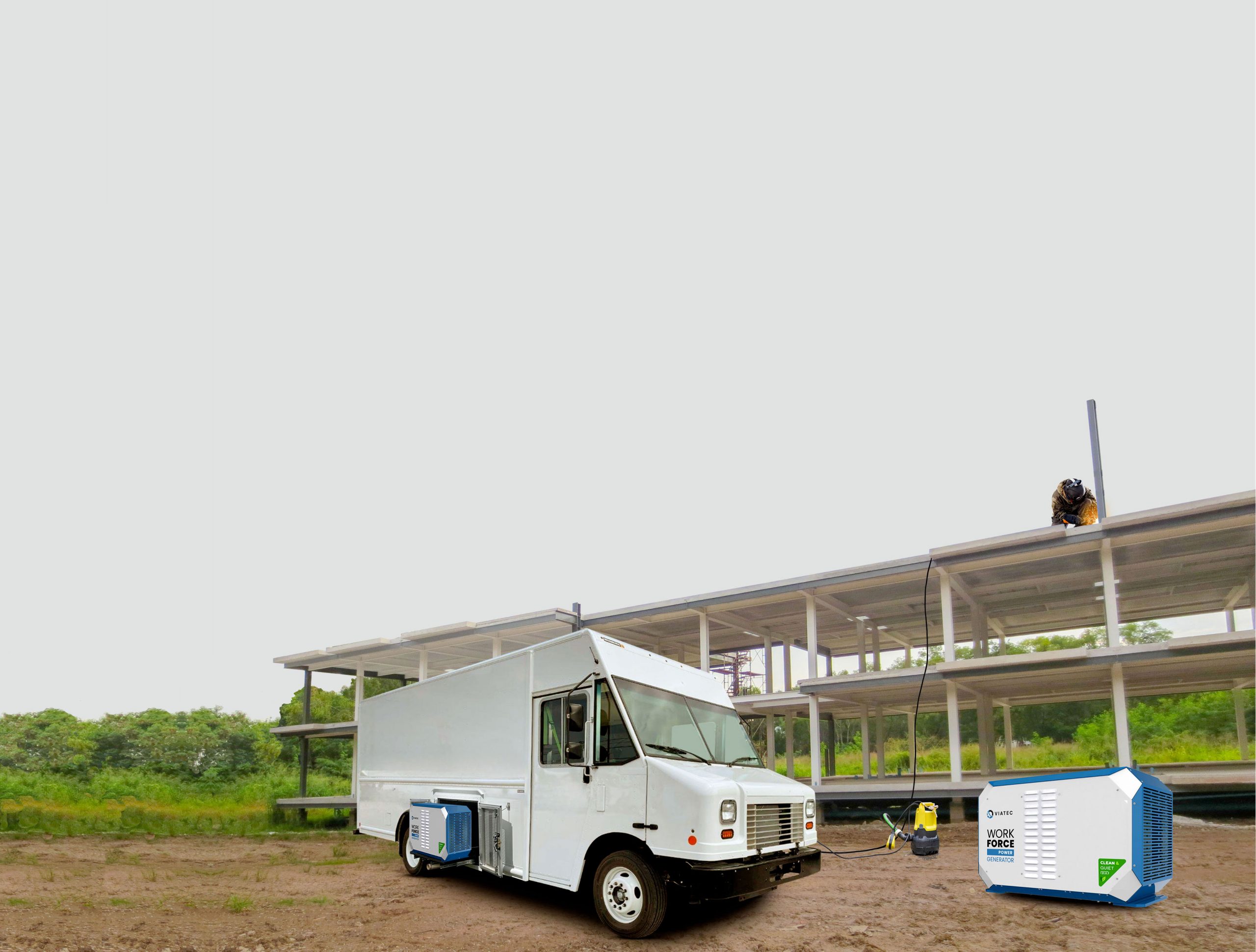

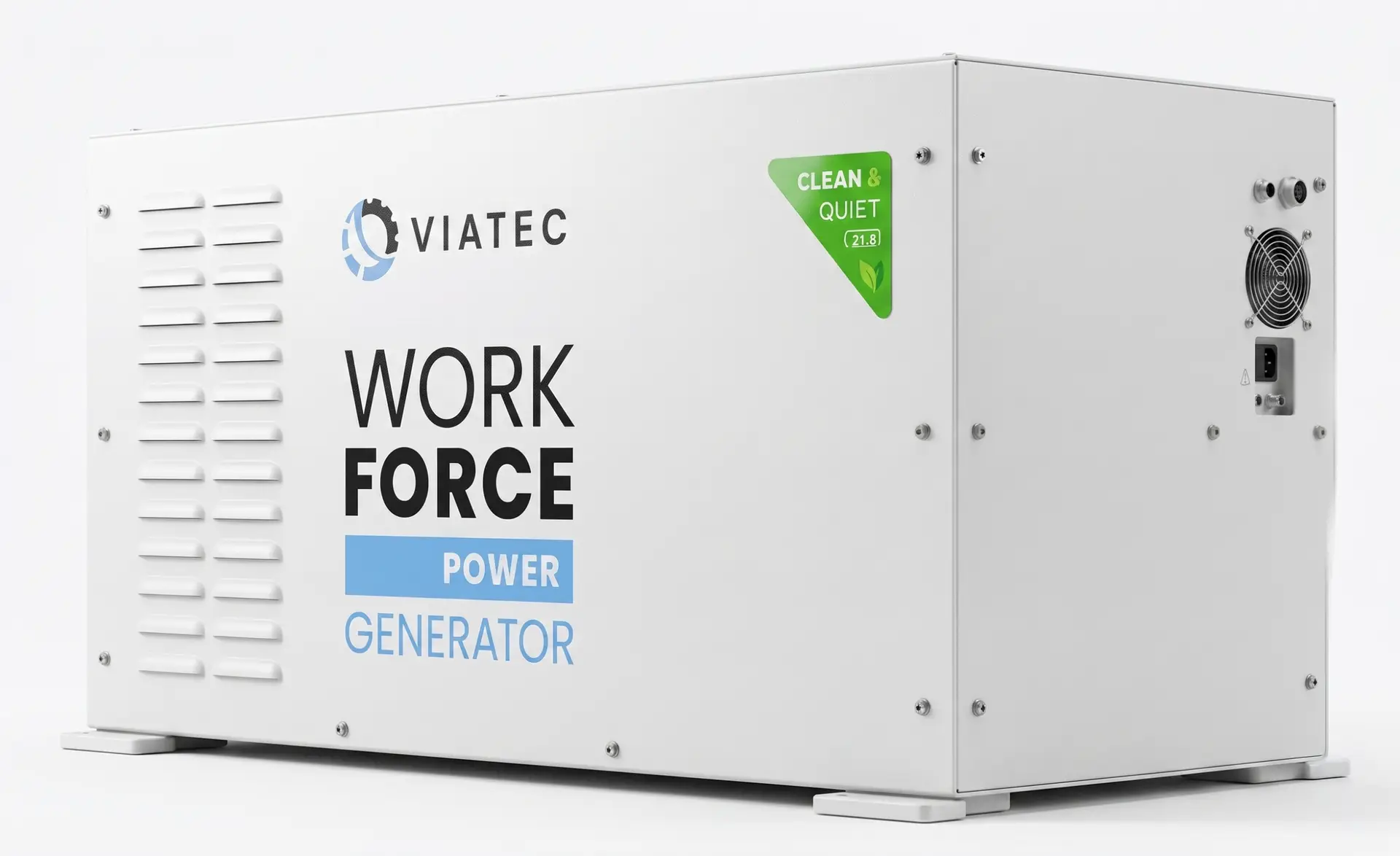

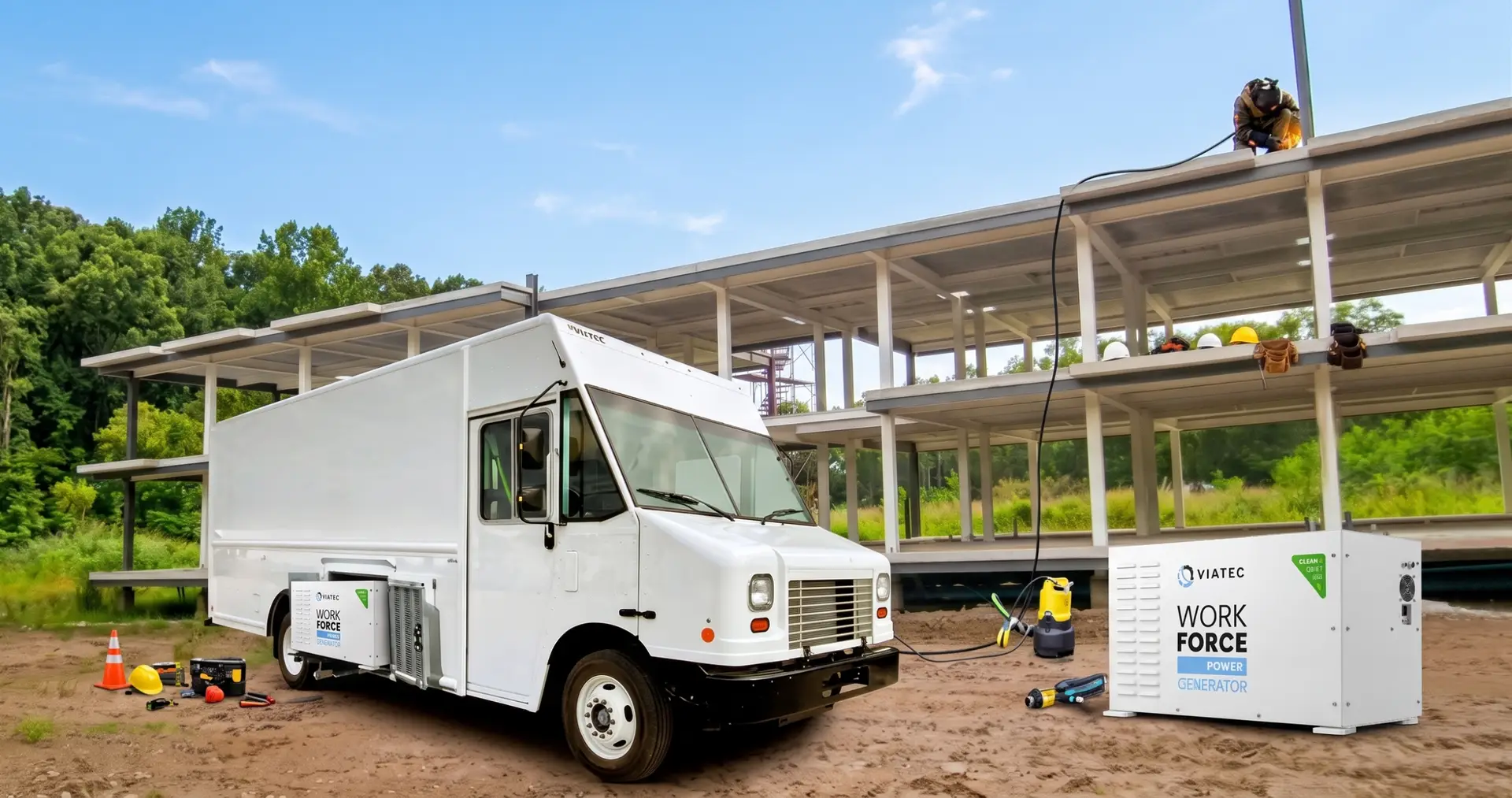

A drop-in replacement for your gasoline or diesel generator, WorkForce Power Generator can power all your electrical equipment at the job site. From welders to HVAC, it easily handles even the most demanding loads, providing clean and quiet operation for a full workday. WorkForce Power Generator can be recharged by plugging into a standard wall outlet or a Level II charger.
Recharge by plugging into a standard wall outlet or Level II charger
Stay cool and keep the A/C going for a comfortable cab temperature without idling the engine
Up to 12kW at 120V and 240V AC 60Hz
Recharge in just 2-3 hours using a Level II charger
14.4 or 21.6 kWh battery capacity options with more than enough power for a full day of use in the field
System Specifications
AC Output
Voltage 120V and 240V
Current (Max) 100A (120V) or 50A (240V)
Power Rating 12kVA Frequency 60 Hz
Export Power
Current Rating ~73 A at 13.7V (~36A at 27.4V)
Power Rating 1000W
Charging
Default Charger 1300W 100-260VAC 50/60Hz Input
Recharge Time (Default Charger) 10 hrs 15 hrs
Fast Charger (Add-on Option) 6000W SAE J1772 EV Interface
Recharge Time (Fast Charger) 2.25 hrs 3.25 hrs
Battery
Chemistry Lithium NMC
Storage Capacity 14.4 kWh 21.6kWh Estimated Life
10 years to 80% of initial capacity
Battery Management System Integrated
Operating Temperature Range* -25°C to +45°C ambient temperature
User Interface
Primary 7” Color Touch Screen + Key Switch + Generator Toggle Switch
Dimensions and Weight
Length 41.2” (1046 mm)
Width 21.5” (547 mm)
Height 22.;4” (570 mm)
Weight 600 lbs (273 kg) 700 lbs (318 kg)
Clean, heavy-duty power for your medium-duty vehicles
See how you can bring your emissions goals within reach by replacing diesel generators on your fleet with WorkForce Power Generator.
