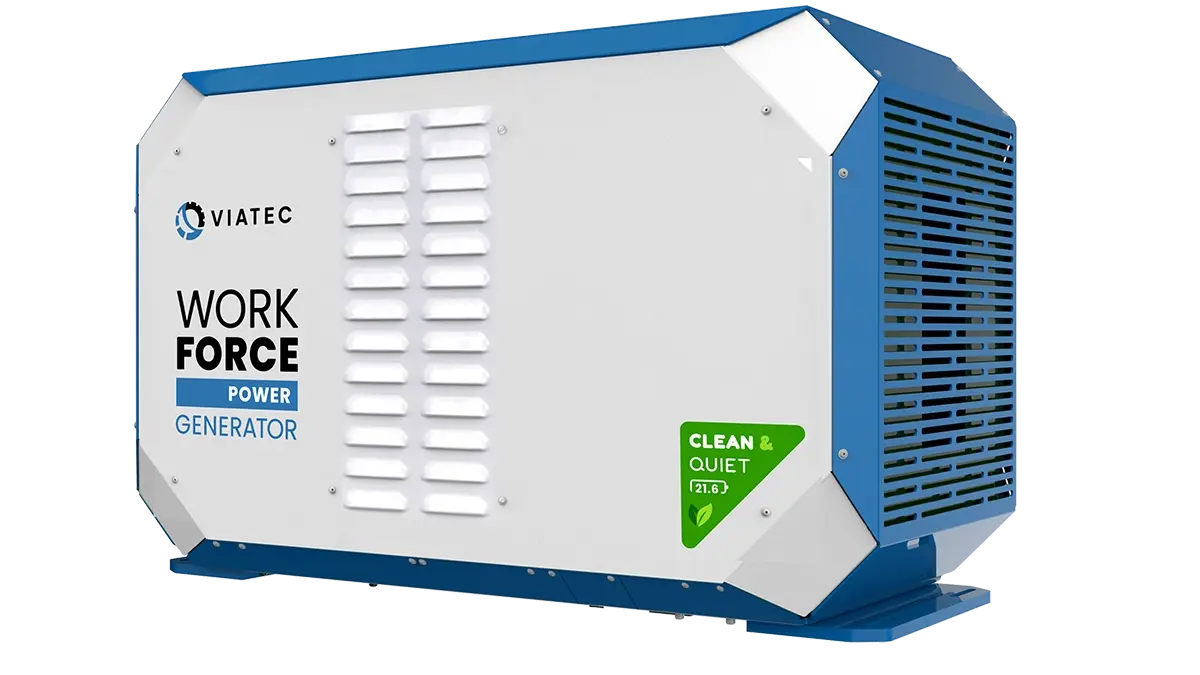

WorkForce Power

Generator

Go from diesel to electric with ease

A drop-in replacement for your gasoline or diesel generator, WorkForce Power Generator can power all your electrical equipment at the job site. From welders to HVAC, it easily handles even the most demanding loads, providing clean and quiet operation for a full workday. WorkForce Power Generator can be recharged by plugging into a standard wall outlet or a Level II charger.



Recharge by plugging into a standard wall outlet or Level II charger

Stay cool and keep the A/C going for a comfortable cab temperature without idling the engine

Up to 12kW at 120V and 240V AC 60Hz

Recharge in just 2-3 hours using a Level II charger

14.4 or 21.6 kWh battery capacity options with more than enough power for a full day of use in the field

System Specifications

DOWNLOAD Specifications Sheet WORK FORCE POWER EXPORT

AC Output

Voltage (nominal) 120V and 240V
Current (Max) 100A (120V) or 50A (240V)
Power (rated max)* 12kVA
Frequency 60 Hz

Export Power

Current Rating ~73 A at 13.7V (~36A at 27.4V)
Power Rating 1000W

Charging

Default Charger 1300W 100-260VAC 50/60Hz Input
Recharge Time (Default Charger) 14.4 kWh unit: 10 hrs
21.6 kWh unit: 15 hrs
Fast Charger (Add‑on Option) 6000W SAE J1772 EV Interface
Recharge Time (Fast Charger) 14.4 kWh unit: 2.25 hrs
21.6 kWh unit: 3.25 hrs
Fast Charger Weight Addition 25 lbs (11 kg)

Battery

Chemistry Lithium NMC
Storage Capacity 14.4 kWh 21.6 kWh
Estimated Life 10 years to 80% of the initial capacity
Battery Management System Integrated
Operating Temperature Range** -13°F to 115°F (-25°C to 45°C) ambient temperature

User Interface

Primary 7” Color Touch Screen + Key Switch + Generator Toggle Switch

Dimensions and Weight

Length 45″ (1143 mm)
Width 21″ (533 mm)
Height 23″ (585 mm)
Weight 14.4 kWh unit: 600 lbs (273 kg)
21.6 kWh unit: 700 lbs (318 kg)
* Combined maximum output power (AC and DC) is 3000W
** Operating temperature range is dependent on actual cell temperatures, cooling capacity, and built-in heater capacity; Actual performance may vary based on operating environment, storage conditions when not in use etc.

DOWNLOAD Specifications Sheet WORK FORCE POWER EXPORT

Clean, heavy-duty power for your medium-duty vehicles

See how you can bring your emissions goals within reach by replacing diesel generators on your fleet with WorkForce Power Generator.
